Three Phase Super Premium Efficiency Permanent Magnet Motors

ZYE IE3 Three Phase Super Premium Efficiency Asynchronous Induction Cast Iron Motors(cast iron))

ZYE IE3 Three Phase Super Premium Efficiency Asynchronous Induction Cast Iron Motors(cast iron))

The ZYE series motora is a multi-purpose electric motor and is the preferred choice for industrial applications.

  • Product Details

ZYE(IE2/IE3) Series (Center height H80-355mm,power range 0.55-375kw) electric motor is ful-enclosed air cooling squirrel cage three phase asynchronous motor ,its energy sfficiency meets lE2//E3 of lEC60034-30,general voltage 380V frequency50HZ and can also be built according to customer requirement. Working tempera- ture-15℃-40℃,altitude:below 1000M, insulation grade: Class F/B temperature raised, protection grade:lP55,cooling type:1C411, Duty:S1,mounting type meets the standards lEC and DIN. It widely applied for mechanism transmission industry such as machinery tools , speed reducer , pump, air blower , package machine, mining machine, construction machine.  ZYE(IE2/IE3) series electric motor general- ly applied to many kinds of machinery that need normal motor driving . ZYE(IE2/IE3) Series electric motor fits IE2/IE3 in GB18613-2012.




Mounting And Overall Dimensions

IE2 Technical Data

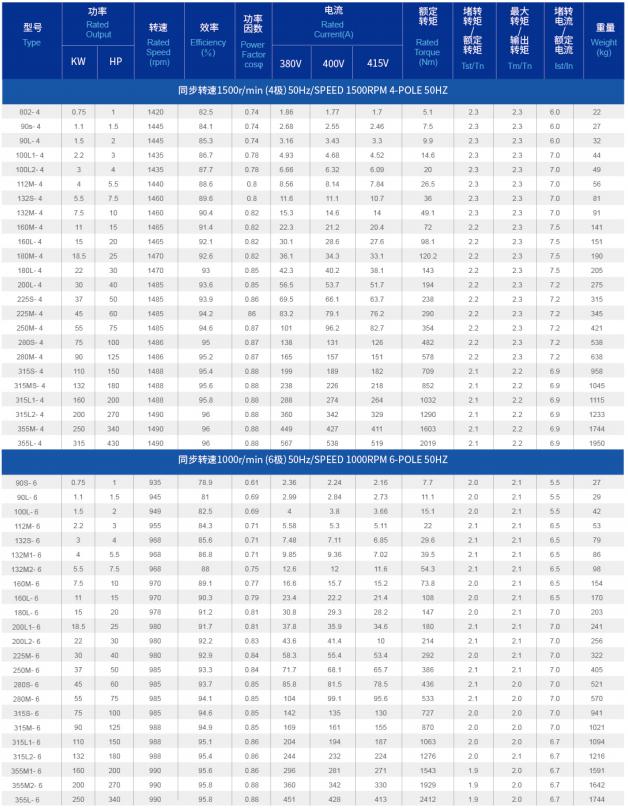

IE3 Technical Data

Output Power (KW)
0.55-375
Rated Voltage (V)
360V, 380V, etc
Efficiency(%)
85-95.1
Speed (r/m)
1500, 3000
Frame Size (mm)
80M-355M
Mounting
 B3, B35, B5
Protection Class
For above
Insulation Class
IP55 or above
Temperature Rise
 B
Duty S1
Cooling Method
IC411
