Three Phase Super Premium Efficiency Permanent Magnet Motors

ZGT IE4 Three Phase Super Premium Efficiency PM magnet synchronous motors

ZGT IE4 Three Phase Super Premium Efficiency PM magnet synchronous motors

The ZGT series Motors are designed to meet various efficiency requirements across markets. The range offers great opportunities for global OEM's in pursuit of supply chain optimisations as well as energy savings.

  • Product Details

• Under the premise of high efficiency and high power factor of permanent magnet motors, the ZGT series motors directly connect the rotor to the machine head to reduce transmission losses and improve the overall machine efficiency.

• With the advancement and rationality of green technology, and the principle of energy efficiency adaptation and environmental quality improvement, the whole process of the design and operation of the mechanical and electrical equipment system is rationally planned, and the obvious results of energy saving and consumption reduction are obtained!

• Adopt special stator slot and optimized rotor structure, use low-loss high-quality silicon steel sheet, high-grade permanent magnet material, high magnetic field utilization rate; motor energy efficiency is higher than the first-class energy efficiency requirement of permanent magnet energy efficiency standard GB30253-2013, far exceeding IE4 efficiency.

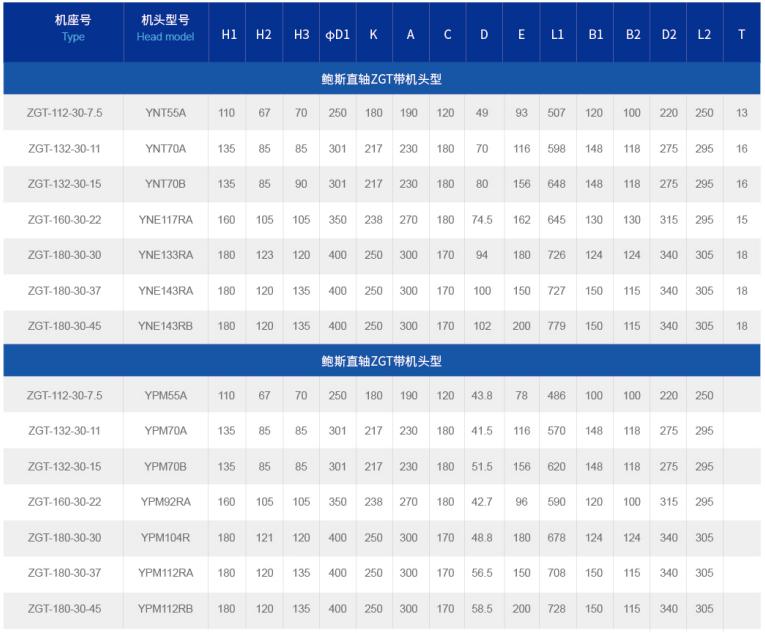

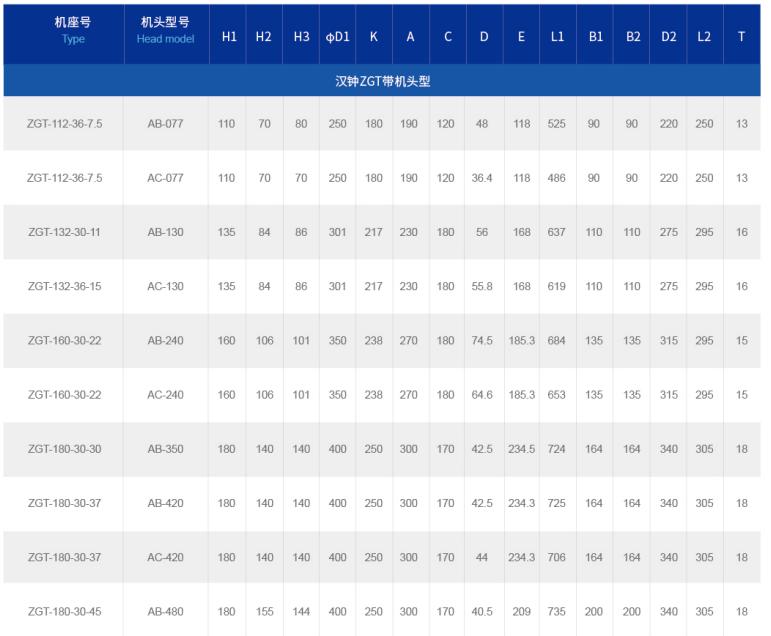

• various airends (BSC, Hanbell, etc.) can be adapted by changing the transition flange and bushing.


Technology Characteristics


Output Power (KW)
7.5-45
Rated Voltage (V)
380V
Frequency (Hz)
150, 180, 200, 240
Speed (r/m)
1500, 3000, 3600 etc
Frame Size (mm)
112-180
Mounting
according to airend
Protection Class
For above
Insulation Class
IP23 or above
Temperature Rise
 B
Duty S1
Cooling Method
IC411
