Three Phase Super Premium Efficiency Permanent Magnet Industrial Fan

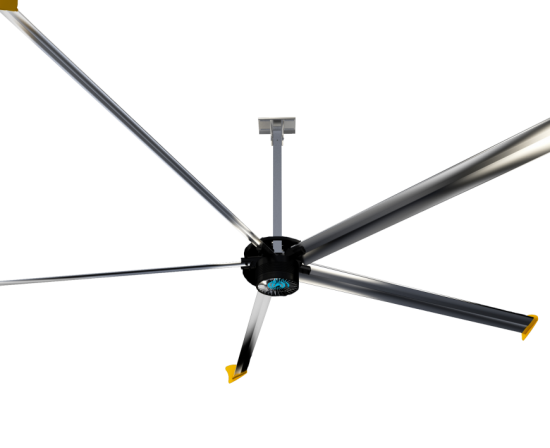

5 Aluminum Alloy Blade Big Electric AC Motor Industrial Ceiling Fan

5 Aluminum Alloy Blade Big Electric AC Motor Industrial Ceiling Fan

Wuyi series is a new type of industrial fan based on permanent magnet synchronous motor technology and with a maximum diameter of 7.3m. It can promote the air flow circulation in the space under the extremely high efficiency, achieve the purpose of cooling, and greatly improve the environmental comfort.

  • Product Details

Introduction of Wuyi

Wuyi series is a new type of industrial fan based on permanent magnet synchronous motor technology developed by Zhongyan science and technology, with a maximum diameter of 7.3m. The product combines the cutting-edge technologies of a series of comprehensive disciplines such as aerodynamics, transmission dynamics, pulse width modulation control technology, mechanical mechanics, simulation technology, communication control, industrial design, etc., and is manufactured with advanced precision processing equipment at home and abroad. It can promote the air flow circulation in the space under the extremely high efficiency, achieve the purpose of cooling, and greatly improve the environmental comfort.


Performance and Characteristics

1.More powerful
 Wuyi series adopts the latest PMSM technology and unique large torque external rotor direct drive design. For the traditional industrial fan, the friction loss of the gearbox is removed. 260n. M super large torque, the biggest advantage of this technology is that it can output more stable air volume, making the product's full load air volume reach888000m3/h,more than 30% of the air volume of common products on the market.

2. More efficient
 Permanent magnet direct drive motor design, which is not affected by the traditional motor pole number, can be designed as a multi pole motor. Compared with the speed reducer to drive the fan, the permanent magnet direct drive system removes the gearbox and improves the transmission efficiency.

3. More mute
 Lower noise level. The common industrial fan driven by traditional reducer on the market usually has a noise standard of more than50dB.Through the application of permanent magnet synchronous direct drive motor, the noise index of Wuyi series products is reduced to 38.5db.

4. More ingenious
 Wuyi series is more compact and requires less installation space. The height of the main engine is only 0.36M, while the installation space of common products on the market is more than 1.2m,and that of Wuyi series is only 0.86m.

5. Maintenance free
 The industrial fan with gear drive technology is commonly used on the market, and the reducer needs to be maintained on a regular basis; the Wuyi series products adopt permanent magnet synchronous direct drive motor, double bearing design, fully sealed, and truly maintenance free.


Function introduction
Artificial cooling
The natural wind generated by the product can blow the human body in an all-round three-dimensional way to speed up the cooling of the human body. Generally, after the cooling,the body temperature difference can be reduced by 4-7C,once placed in it you can feel extremely comfortable.

Dehumidification and dampness removal
The product can promote the air mixing of the whole space,well disperse and absorb the peculiar smell in the air, so as to improve the air quality,obtain a healthy,dry and safe production,life and entertainment environment,and effectively reduce the noise and dehumidification.

Natural draft
 In the large and wide airtight place, the traditional ventilation scheme is limited greatly, and the roof negative pressure fan cannot regulate the air in every corner and ground very well. With industrial energy-saving fans, the problem can be solved. Industrial energy-saving fans can effectively enhance the orderly movement of air flow field in the space, promote the air mixing in the whole space,cooperate with roof fans,achieve the best effect of improving air quality, and obtain a healthy, comfortable and safe environment.


Technology Characteristics

Type ZYF-49E
ZYF-55E
ZYF-61E
ZYF-73E
Fan Diameter
16ft
18ft
20ft
24ft
Max air volume
10800m³/min
11600m³/min
12600m³/min
13500m³/min
RPM(min/max)
5-75Rpm
5-70Rpm
5-62Rpm
5-57Rpm
Weight 113Kg
121Kg
125Kg
140Kg
Power
1.5KW
1.5KW
1.5KW
1.5KW
Full-load current 220V 6.0A
6.1A
6.3A
6.5A
Full-load current 380V
3.0A
3.3A
3.5A
3.6A
Coverage area
700㎡
900㎡ 1100㎡ 1500㎡


Applications
  • Gymnasium
  • Workshop
  • Railway Station
  • Logistics Storage
  • Large Shopping Malls
  • Canteen
